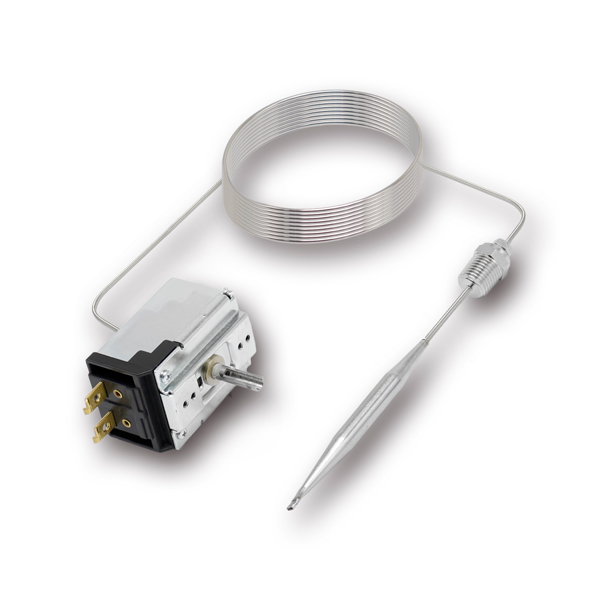

Adjustable Themostat
T125-Series
Strong and durable, the T125 Series is an adjustable thermostat
that has a switch structure that allows the pre-voltage or low-voltage loads.
Features
- Temp Range : 37°C to 260°C
- (100°F to 500°F)
- Capillary Tube Length : Max. 3,000mm (10ft)
- Bulb Type : 3/16", 1/4", 5/16", 3/8"
- Switch Type : SPST
- Electric Rating : 120, 240, 277, 480 VAC
Applications
- Commercial kitchen equipment
- Fryer, oven, coffee machine
- Industrial equipment and devices
- Plating tank, duct heater, booster heater
Main Model
Model
Temp Range
Electric Ratings
Bulb Dimensions
Switch
Accuracy
TB125-017
65℃∼288℃(150°F∼550°F)
30A / 250VAC
Ø4.8 X 265mm (0.188"X10.451")
SPST
±6.1℃ (±11°F)
Learn more...
-
TB125-017
TC125-025
93℃∼204℃(200°F∼400°F)
50VA / 250VAC
Ø9.52X106.5mm (0.375"X4.193")
SPST
±3.3℃ (±6°F)
Learn more...
-
TC125-025
